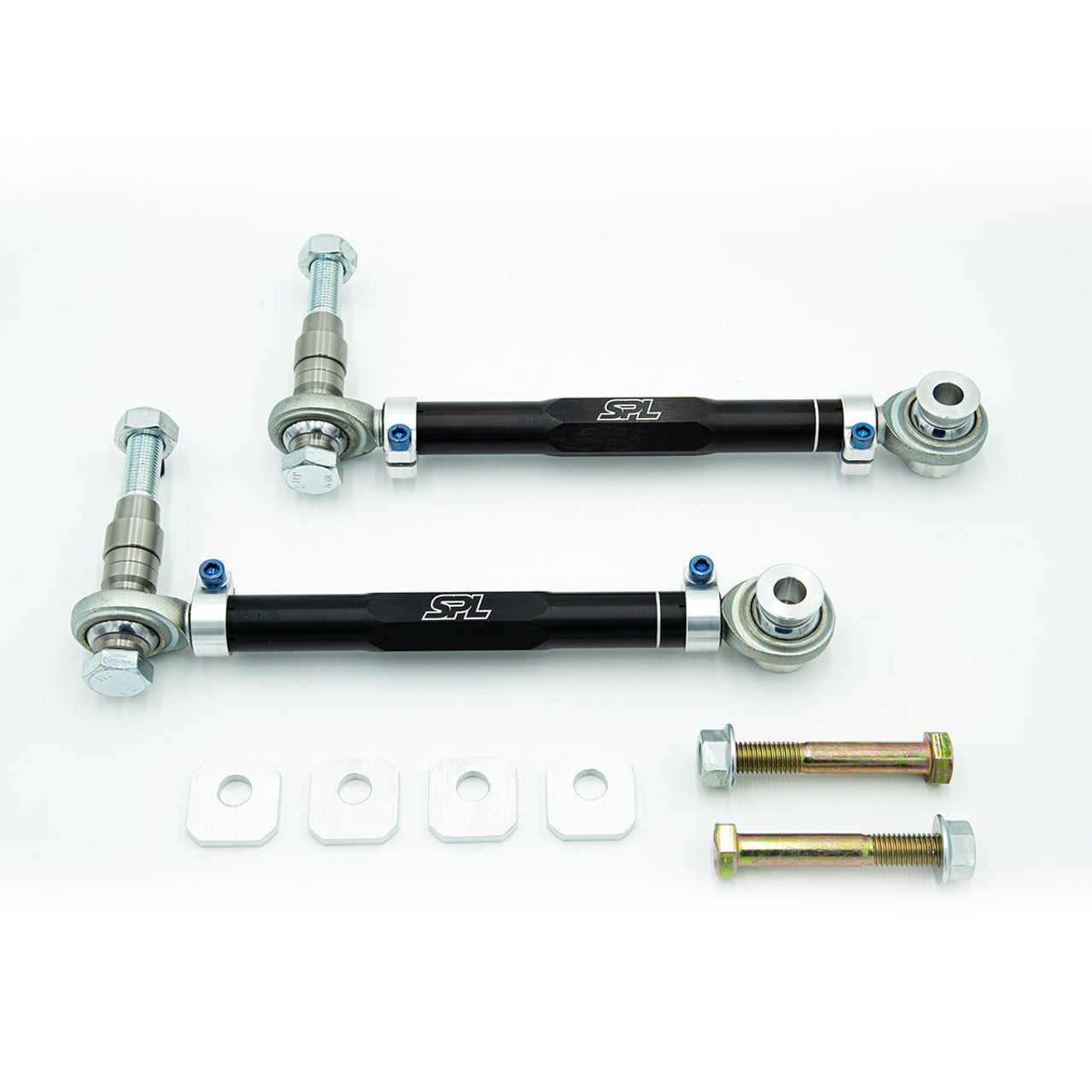

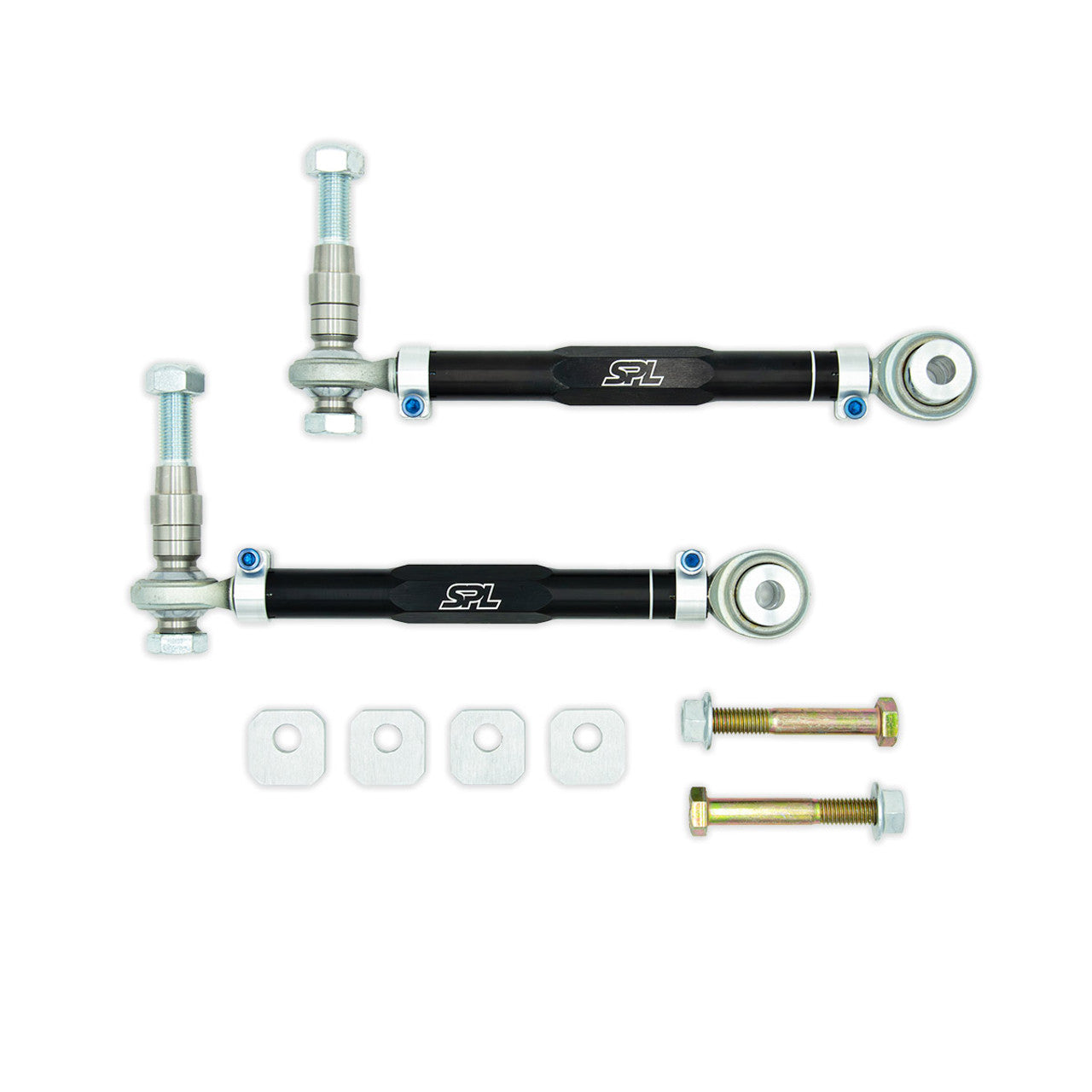

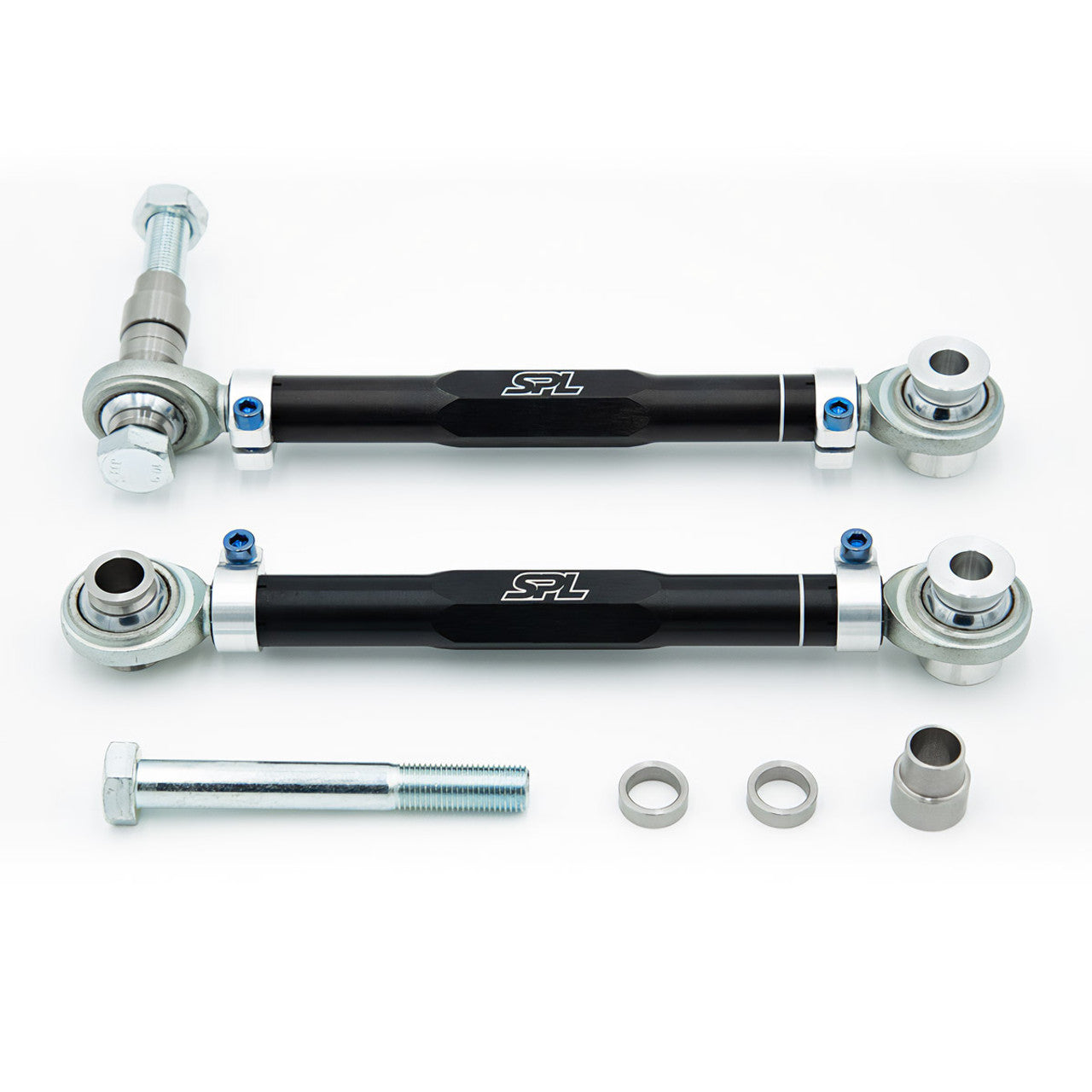

SPL - Evo X Rear Toe Arms + Eccentric Lockouts

SPL Evo X Rear Toe Arms (RTAEL) increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments.  Even small changes to ride height and camber will affect toe settings, and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car.  The factory rear toe arms utilize an eccentric bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer. Black Anodized and gun drilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. The rotating clamps are tightened with blue anodized titanium socket head cap screws for easy to access adjustment, and shaves even more unsprung weight, without compromising strength.

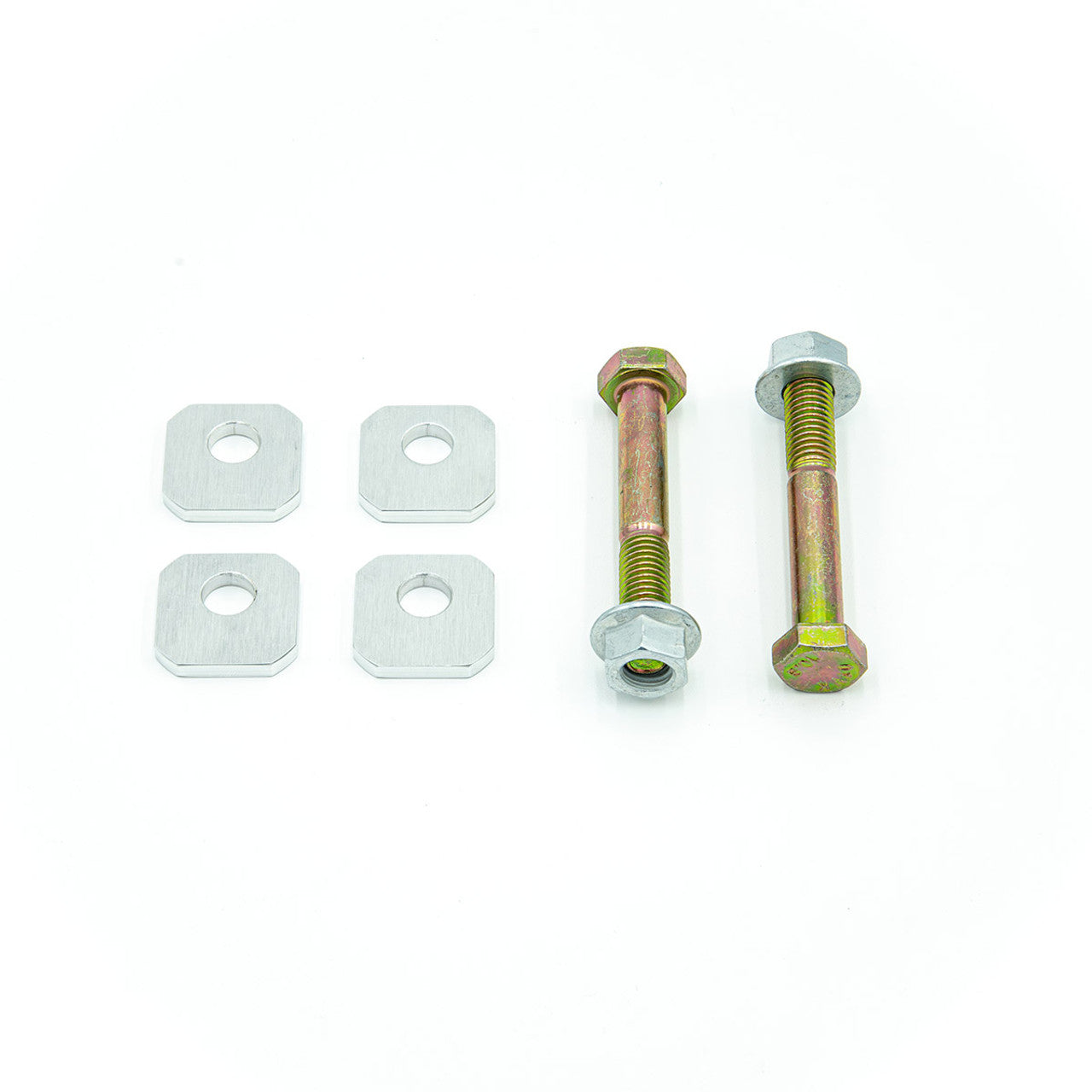

This kit also comes with the popular eccentric lockout kit to replace the OEM eccentric bolts, which are prone to slipping under heavy load and shifting your alignment, with a non-adjustable bolt and 6061-T6 aluminum lock plate. It's a bit of insurance for your track day or fun run.

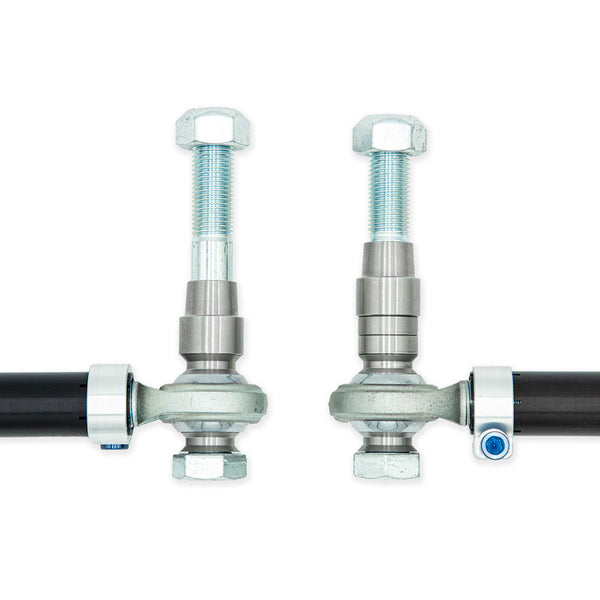

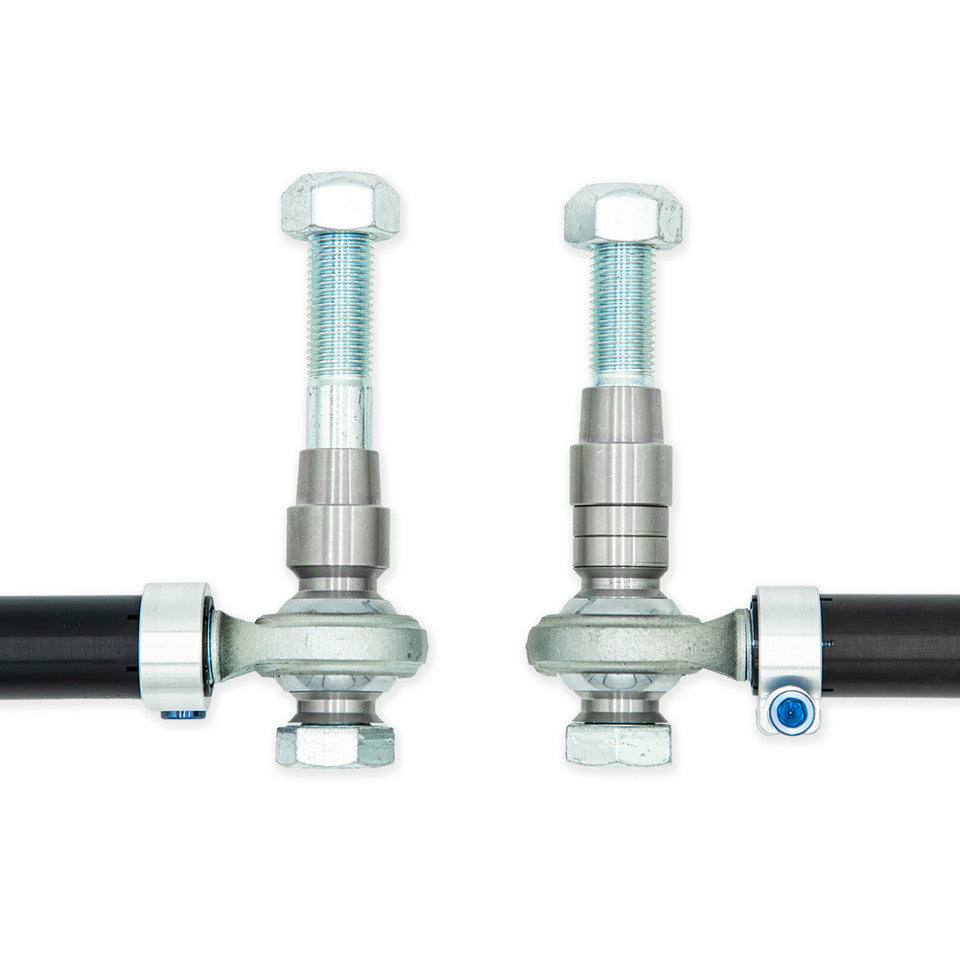

FK Spherical Bearings and Rod Ends are manufactured in Connecticut and utilize a Teflon liner to provide quiet operation, lower friction, smooth articulation, and eliminates bushing deflection under load. The liner is also self-lubricating and self-cleaning, offering robust reliability for street and track use. The PTFE liner is chemically bonded to the inner diameter of the race, and offers a very high load carrying capacity that has greatly increased dynamic wear characteristics.

 SPL Mitsubishi Evo X Rear Toe Arms Feature:

• Lightweight 2024 Aluminum Links

• Blue Anodized Titanium Socket Head Cap Screws
• 6061-T6 Aluminum Rotating Clamp Design
• PTFE-lined, US Made FK Rod Ends

Made in the USA and sold as a pair.

Applications:

2008 - 2015 Mitsubishi EVO X

Installation Instructions:

SPL RTAEL EVOX
