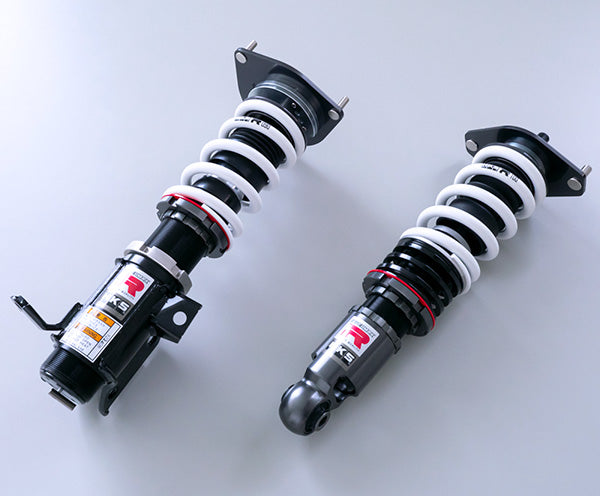

HKS- HIPERMAX SERIES R TOYOTA GR86 ZN8
HKS- HIPERMAX SERIES R TOYOTA GR86 ZN8
Click image to open expanded view
HKS- HIPERMAX SERIES R TOYOTA GR86 ZN8
HKS- HIPERMAX SERIES R TOYOTA GR86 ZN8

HKS- HIPERMAX SERIES R TOYOTA GR86 ZN8

Pickup available at 133-38 32nd Ave

Usually ready in 5+ days

View store information
Price
$2,502



Application

Engine FA24
Model Year 21/10 -
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket 〇 〇
Upper mount Spherical bearing Spherical bearing
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Impossible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)		 - 〇 (19.8)

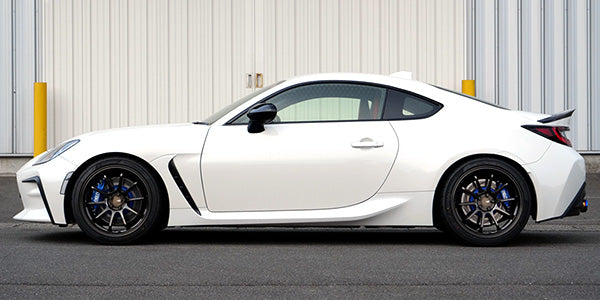

Ride Heightmm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 636 638 664 ～ 619 664 ～ 619
Against stock -28 -26 0 ～ -45 0 ～ -45
REAR Ride height *1 636 ← 669 ～　610 669 ～　610
Against stock -33 ← 0 ～ -59 0 ～ -59



*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
