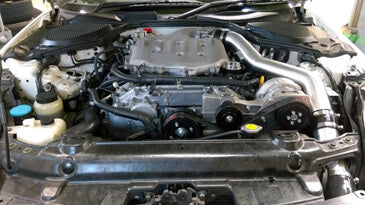

Over 500HP with Z33!!
This kit can achieve over 500hp if the engine is strengthened, and better torque and power than GTS7040 kit with a stock engine.

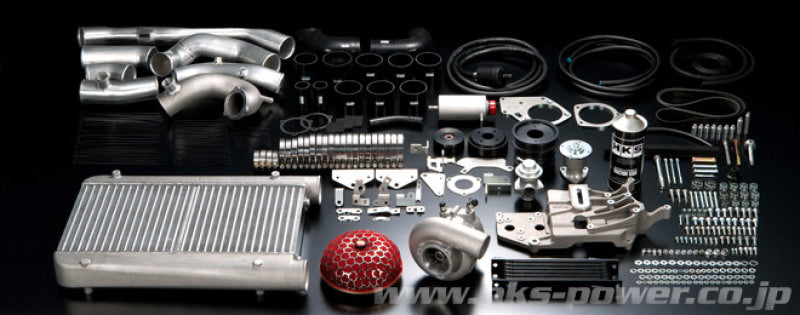

【Features】
- The intercooler size is doubled compared to the existing kit. The capacity is doubled as well to withstand 500hp.
- The diameter of the suction pipe and intercooler pipe is enlarged by 35%.
- The airflow capacity of the supercharger is increased by 30% compared to the existing kit (GT7040).
- With adequate airflow, the torque & power increase are noticeable from the low to high speed range!!
【Performance】
【Note in order to install this kit】
- S/C Pulley: Prepare φ100 or φ110 supercharger pulley depending on the target output.
- Belt: Prepare a belt matches with the supercharger pulley.
S/C Pulley Dia. Code No. Belt Code No. φ100 12999-AK005 7PK1070 24996-AK038 φ110 12999-AK006 7PK1092 24996-AK039 - Prepare a engine management system such as HKS F-CON.
- Select the spark plug which heat range is appropriate to the vehicle specifications.
- Fuel Parts: HKS Fuel Upgrade Kit which is designed to withstand 400hp or more.
| Make | Model | Engine | Model Year | S/C SIZE | Code No. | Remarks |
|---|---|---|---|---|---|---|
| NISSAN | 350Z | VQ35DE | 2003 - 2007 | GTS8555 | 12001-AN008 | For MT/AT, Requires purchase of supercharger pulley and belt separately, depending on the target power output. Installation may require Fuel Upgrade Kit(14007-AN005) available separately. |
