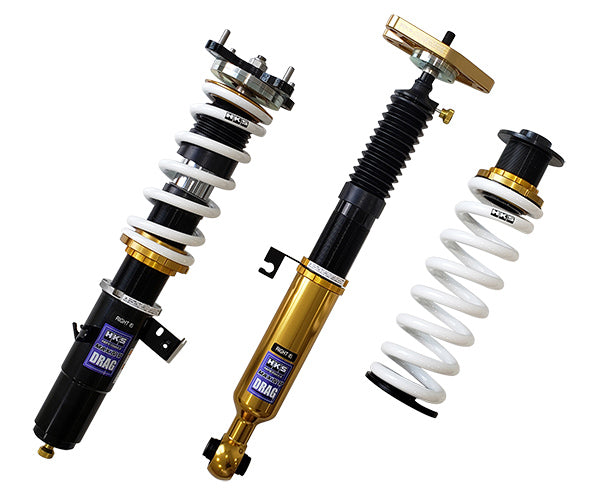

Hipermax Max IV SP Drag Suspension 80250-AT003D

Options:Without SEC

HKS Hipermax Max IV SP Drag Suspension for Toyota Supra A90 DB42

Return of Drag Specification Dampers. Introducing the latest technologies to suit modern drag racing requirements. The drag suspension designed based on HIPERMAX II Drag Suspension. Parts such 300mm long spring, helper spring, etc. are selected for each vehicle model to maintain sufficient stroke amount and traction. The shock-body length adjustable type is chosen to widen the vehicle height setting range and stroke distribution. This drag suspension guarantees its performance in drag race.


  • After lowering the vehicle height, the irradiation range of a radar and camera may become narrow that result in malfunction of TSS.
  • This kit requires the error canceller of the stock electric shock absorber.

Features & Specifications:

  • Hipermax Max IV SP Drag Suspension 80250-AN004D
  • Engine: B58
  • Ride Height Range:
    • Front: 670 - 626
    • Rear: 686 - 623
  • Spring Rate:
    • Front: 59 N/mm (6 kgf/mm)
    • Rear: 98 N/mm (10 kgf/mm)
  • 30-Step Adjustable Damping
  • Camber Angle Adjustable (Front)
  • PNE Coating
  • Shock-body Length Adjustable
  • Aluminium Bracket
  • Pillow Upper Mount
  • Inverted Type (Front)
  • Built for Nissan Skyline Toyota Supra A90 DB42
