GReddy Supreme SP Exhaust - Scion FR-S/Subaru BRZ/Toyota FT-86

10118206

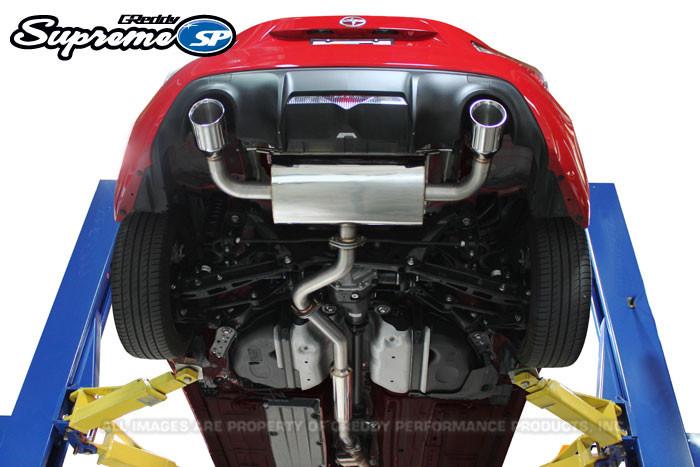

The Supreme SP for the Scion FR-S & Subaru BRZ features a large horizontally mounted, 3-section muffler with a center inlet and an unique, tuned, internal "Y-pipe." This directs exhaust gases through a center chamber to reduce overall sound and improves flow to the outer straight-through sections. These outer sections of the muffler have our updated high-temp, internal sound suppression system. The exhaust is finished-off with dual GReddy slant-cut, double-walled tips in the factory bumper outlets. This cat-back exhaust also uses a simplified exhaust pipe routing with a large straight-through resonator in the mid-pipe, to tune-out any drone. Like all GReddy Supreme SP systems the fully hand-welded 304 Stainless-Steel exhaust carries a Limited Lifetime Warranty.

Make: Scion / Subaru / Toyota
Model FRS / BRZ / 86
Years: 2013-17

Chassis:   ZN6
Engine:   4U-GSE (FA20)
Type:   Cat-back system
 (horizontally mounted muffler with dual tips)

Number of pieces:  3
Piping:   63.5 mm (2.5")
Tip(s):   2x 115mm (4.5")
Gasket(s):  2.5" oval (qty: 2 included) replacement
Resonator:   Yes

Notes:  reuse factory doughnut-gasket and spring bolts for mid-pipe

Weight:  34.8 lbs   (-3.3 lbs)
Sound level:  L82 / R83 dB(a) @4500RPM

Dyno Chart
HP:  +6 hp
TRQ:  +7.5  ft-lbs

* also fits 2017 Toyota 86  Manual Trans

*Data collected on stock vehicle    *Retains catalytic convertor, front pipe
*TBA = To Be Announced

Sound Clip
