CSF x TopRank Full Billet Radiator - Nissan Skyline GTR R32

The Nissan R32 Skyline is a true JDM legend. From GTS to GT-R, the love for this chassis runs deep. Here in the states it is still one of the most popular JDM imports. Import companies like TopRank have been helping enthusiasts acquire these dream vehicles for years. Now they have teamed up with CSF to help bring a truly special product to the market. Introducing the Full Billet High-Performance Aluminum Radiator for the Nissan R32 Skyline.

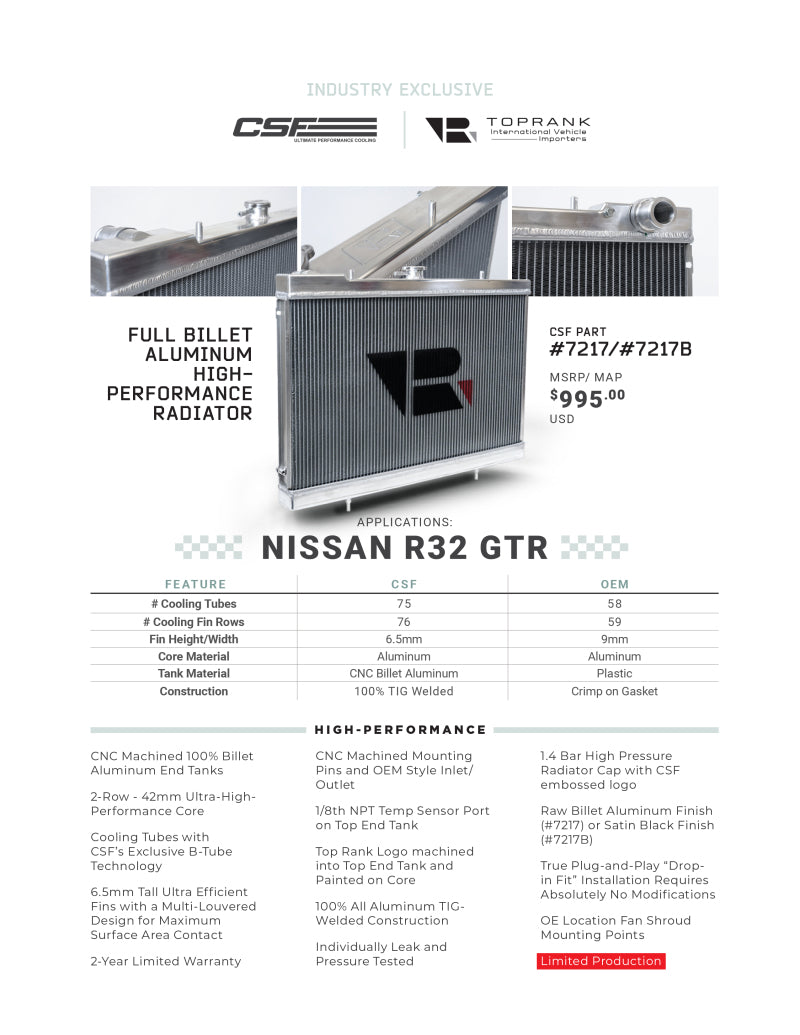

FEATURES:

• CNC Machined 100% Billet Aluminum End Tanks

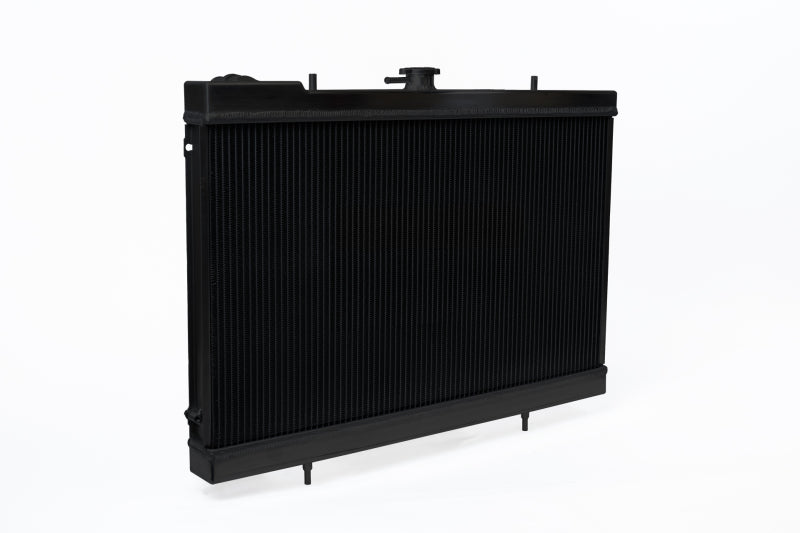

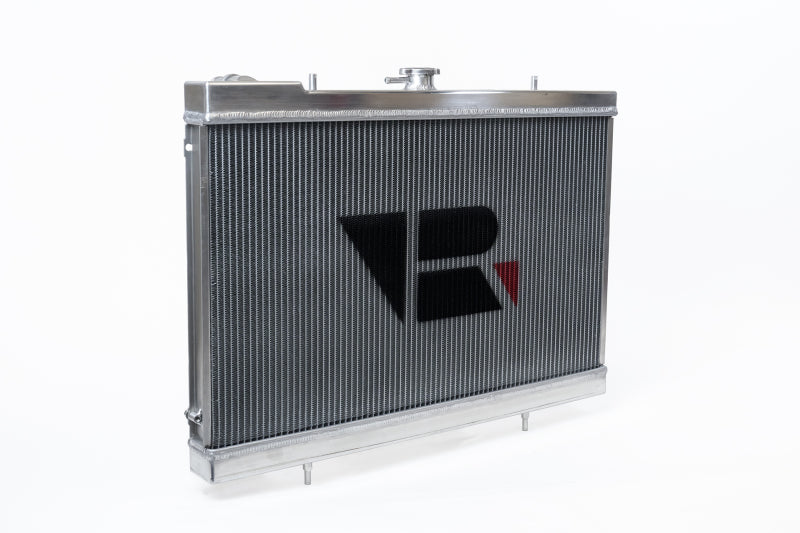

• Raw Billet Aluminum Finish (#7217) or Satin Black Finish (#7217B)
• 2-Row – 42mm Ultra-High-Performance Core
• 75 Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

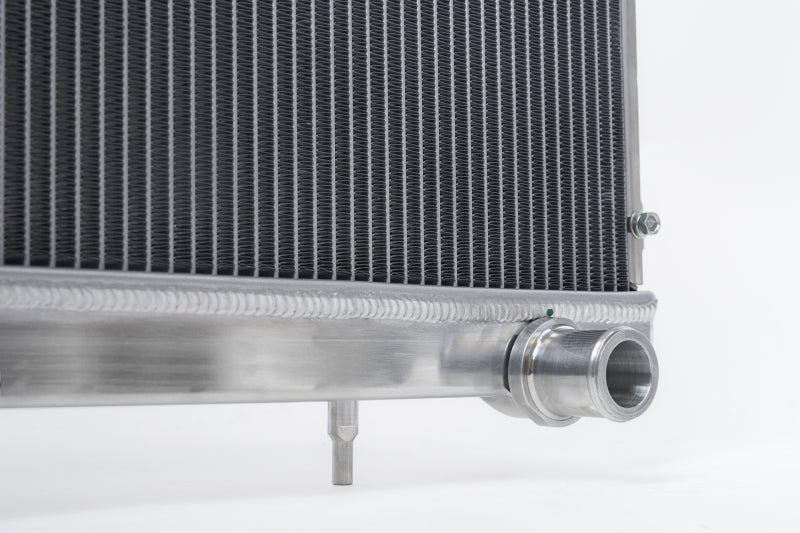

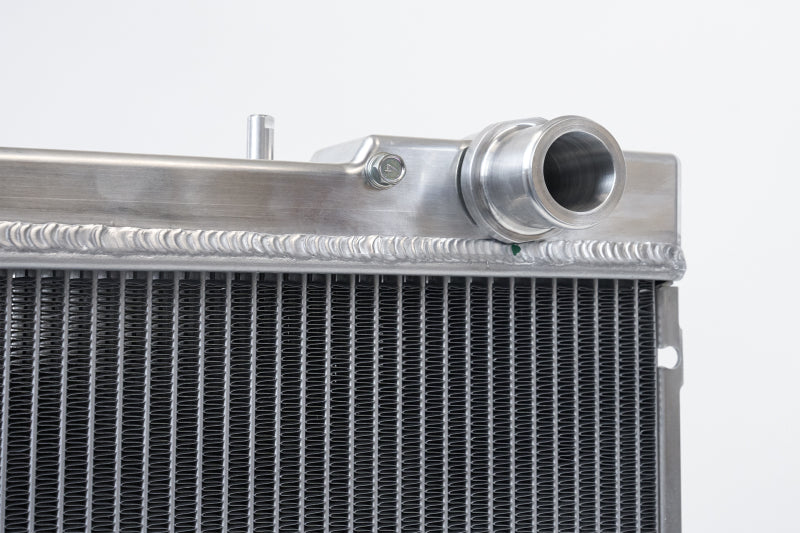

• CNC Machined Mounting Pins and OEM Style Inlet/Outlet
• 1/8th NPT Temp Sensor Port on Top End Tank
• Top Rank Logo machined into Top End Tank and Painted on Core
• 100% All Aluminum TIG-Welded Construction
• 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• OE Location Fan Shroud Mounting Points
• 2-Year Limited Warranty
• Limited Production

OEM Part #:

• Nissan: 21410-04U01

The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant’s heat to dissipate from.

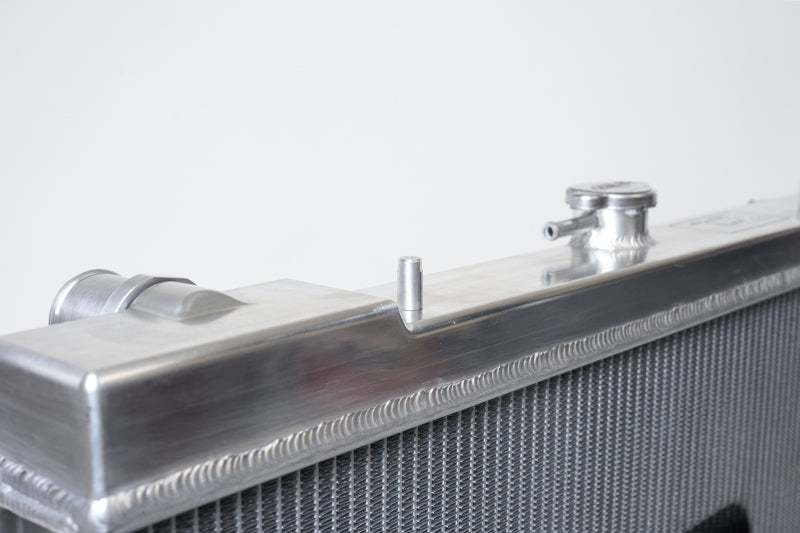

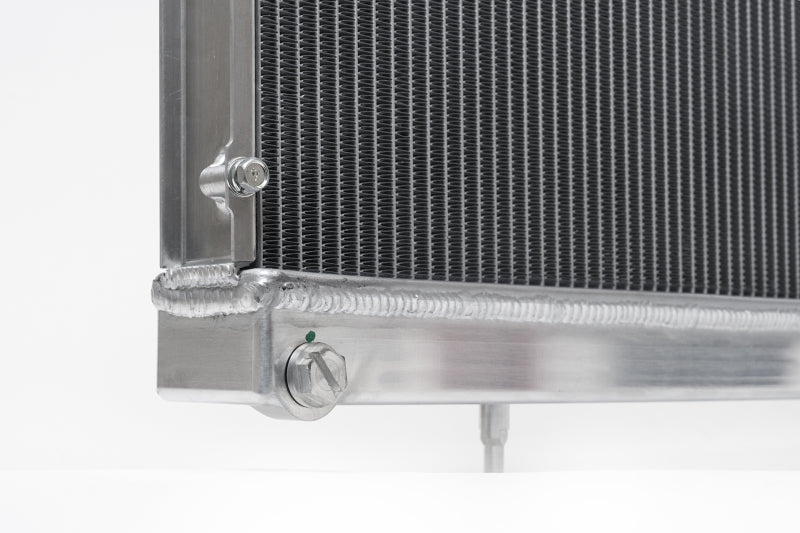

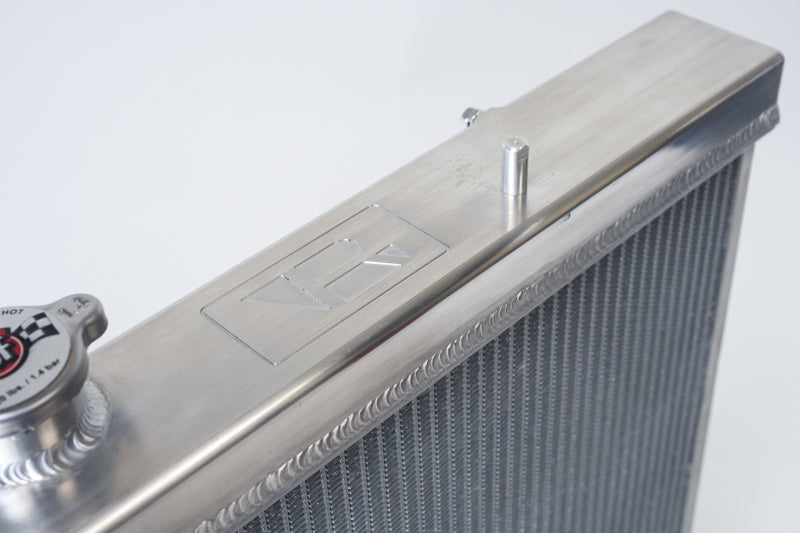

Each end tank is CNC machined billet aluminum giving them incredible strength and durability. CNC machining offers incredible precision and uniformity. The results are perfectly produced end tanks that perfectly match up with the ends of the 42 mm core. Hand TIG welding joins the tanks to the core creating the strongest radiator on the market for the R32 Skyline.
