BMW G20/G80 (2019-up) Camber Plates & OEM Perches
BMW G20/G80 (2019-up) Camber Plates & OEM Perches
Click image to open expanded view
BMW G20/G80 (2019-up) Camber Plates & OEM Perches
BMW G20/G80 (2019-up) Camber Plates & OEM Perches

BMW G20/G80 (2019-up) Camber Plates & OEM Perches

Pickup available at 133-38 32nd Ave

Usually ready in 5+ days

View store information
Price
$685
SPRING PERCH:G80 OEM





This model introduced a whole new array of "challenges" with an all new factory strut top mount design. The spring diameter is very large, and the integrated nature of the top mount + upper spring perch made for a very short stack-up height. We knew immediately that we would have to go back to the drawing board for this top mount design. We ended up building one of the oddest main plates we've ever used in any pair of Vorshlag top mounts - more material, more machine time - but it was worth it in the end.

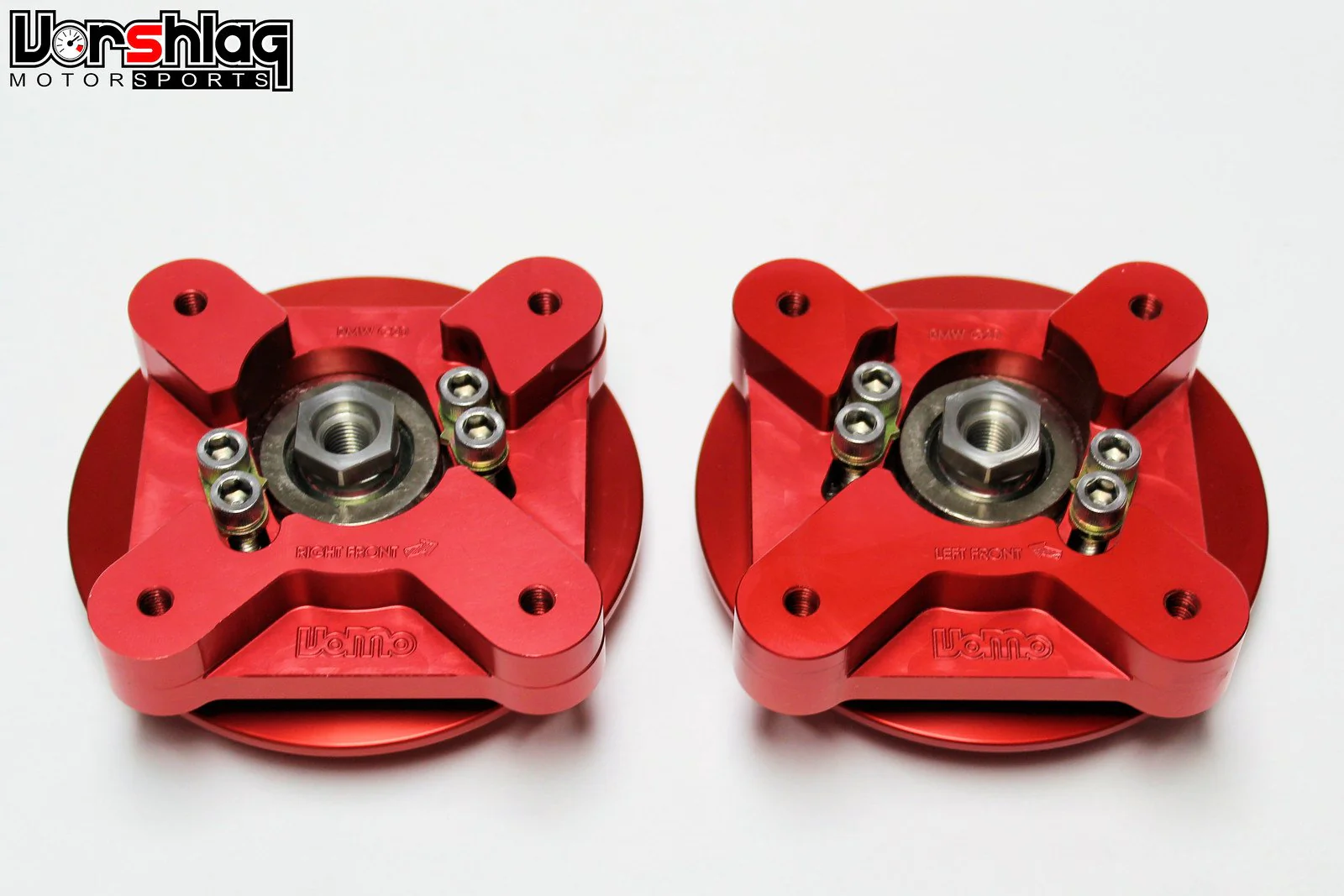

This unusual design shape is unique to the new "G20" BMW (2019+3/4 series, but not the M2 Comp) chassis and the Z4/Mk5 Supra, which are based off of that. We took careful measurements of the OEM BMW top mount to create the camber plate + OEM style spring perch option to maintain the exact same "stack up height", to neither raise nor lower the ride height.

The tight constraints of the factory strut tower and large diameter of the OEM spring limit total camber travel when OEM diameter springs are used. Our test car went from -1.5 deg of camber stock to -2.5 degrees - which is still a worthwhile gain. Moving to a coilover spring / strut combo allows for considerably more camber travel, due to the smaller diameter of the various coilover spring (2.25", 60mm, 2.5") vs the OEM spring (approx 120 mm). We sell a coilover camber plate version in another category within the BMW Suspension section. Converting this OEM style design to work with coilover can be done, but it will require changing more than just the perches.

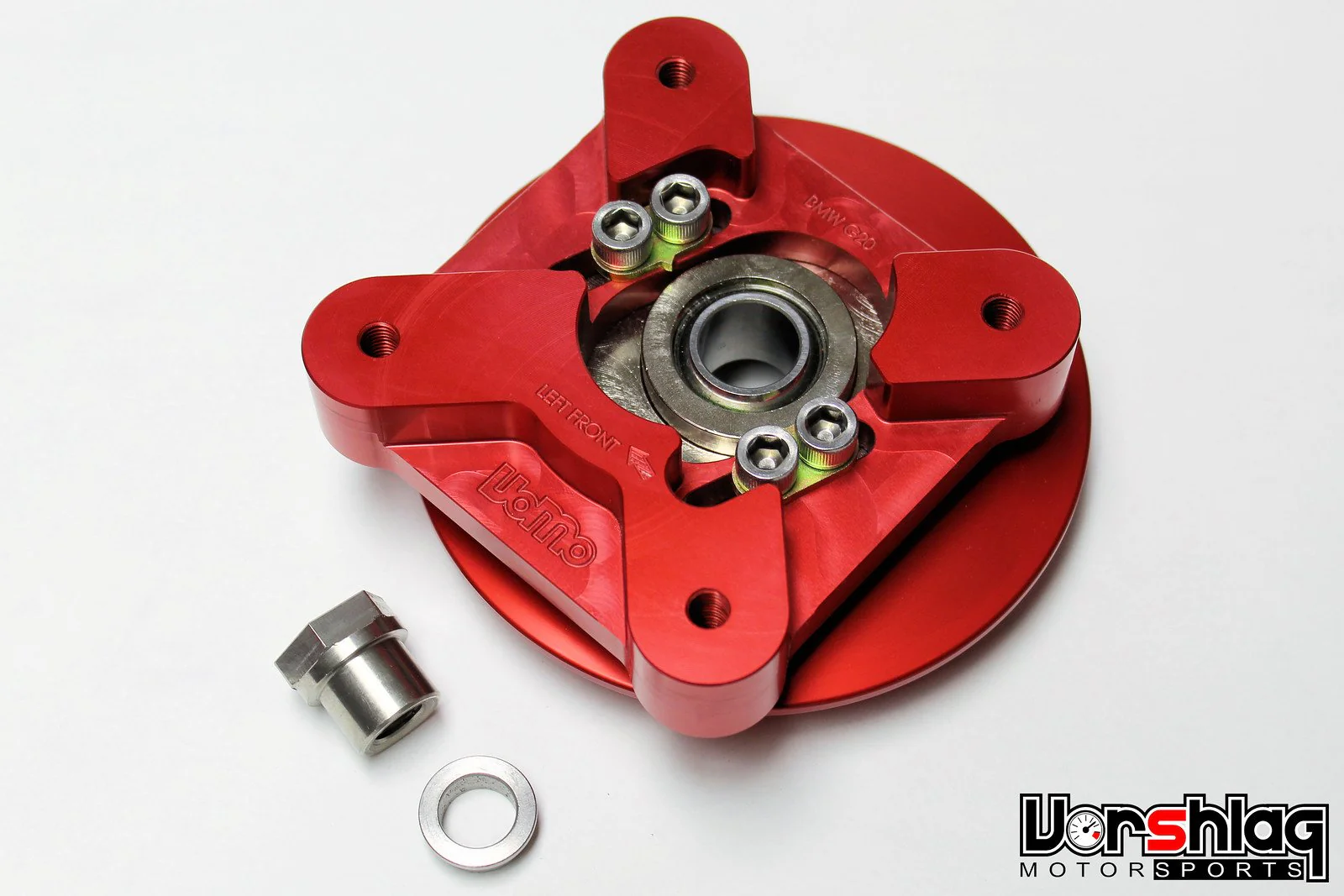

To adjust the camber is simple - with the rubber covers (aka: Tupperware) out of the way, you can see the 4 Socket Head (Allen head) bolts that secure the special bearing holder within the camber plate assembly.



With the suspension lifted to remove pre-load from the top mount, loosen these 4 Allen head bolts (with a 1/4" or 6mm hex key wrench) and slide the top of the wheel inboard (negative) or outboard (positive) to alter the camber setting.

Track side adjustment is easy, and our over-sized spherical bearings are designed to withstand the rigors of street and track abuse. The large sealed radial bearing allows the spring perch to rotate instead of relying on the spherical to spin within the bearing holder (which would wear it out quickly - like most competing designs). All of our components are plated for maximum corrosion resistance and long life. Read more about the engineering behind our camber plates here.



Spring Perches: This catalog entry is for the OEM sized front springs and all aftermarket lowering springs. We have another entry in this BMW Suspension section for the various coilover spring options.

Strut Style: Please pick the brand and type of strut your car has.

If the brand of your strut isn't shown in the options, feel free to call us. Anytime a new chassis hits the track, the aftermarket has to play catch up.  With new suspensions being released we need your help to ensure that new camber plates are being configured correctly.  For us that means we need to know the dimensions of the struts your using to build up a database, as we've done in the past with all the other camber plates we offer.  Please look at the photo below, this is an example of exactly what dimensions we are looking for.  If you are still not sure please contact us!
